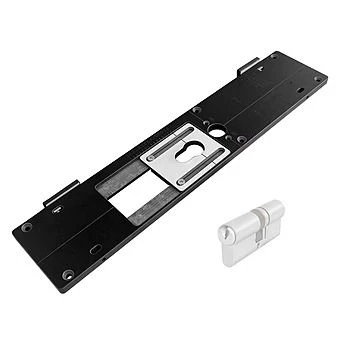

Trend Jig For Euro Cylinder Spindles & Barrels
This brilliant jig is designed to allow you to quickly and easily rout out the holes for a euro cylinder lock barrel as well as the spindle. The jig is easy to set up after just a few measurement markings and is suitable for use with both 44 and 57mm backsets. The size of the jig is made so that there is a tight 1mm clearance around the lock barrel.
Features:
- High quality pressure laminate manufacture.
- Tight 1mm barrel clearance.
- Adjustable for many sizes of locks.
- Suitable for use with 44mm & 57mm backsets.
- Allows handle spindle to be routed.
Technical Specifications:
Shipping Weight:…..3.81kg
Barrel Size:….. 33mm x 17/10mm
Finished Hole Size:….. 22mm x 19/12mm
Handle Spindle Hole Size:….. 16mm
Backset Options:….. 44/57mm
