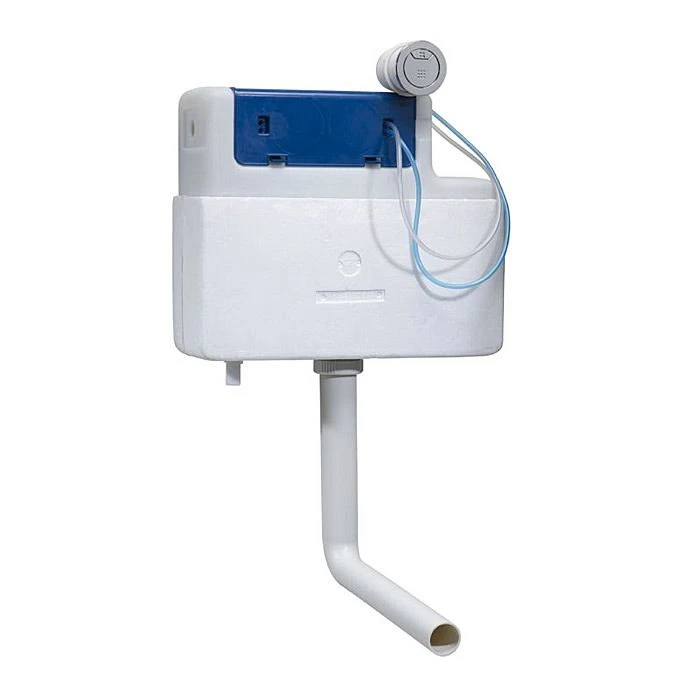

Tavistock VOR790 Vortex Slimline Concealed Cistern

Tavistock VOR790 Vortex 135mm deep, Slimline Concealed Cistern with quiet refill

The Tavistock VOR790 Vortex cistern is ultra slim at just 135mm deep. The Vortex system is designed to be compatible with other Tavistock back to wall toilet pans and furniture units. The pneumatic dual flush valve is push operated and delivers up to 10 bar pressure. The 3/6L cistern allows for adjustable dual flush options and the system has been tested for endurance purposes to 200,000 flushes.

As this is a specialised product, please contact our showroom team for further stock/availability, ordering and purchasing information.

Features

• 3/6 litre adjustable dual flush options.
• Pneumatic flush valve.
• Push button operation.
• Top & front access.
• 0.2 – 10 Bar pressure range.
• Cycle tested to 200,000.
• Rigorously factory tested.
• Designed for slim, neat installation – only 135mm deep.
• Designed to work with low height furniture.
• High density polyethylene with polystyrene insulation jacket preventing condensation & quiet re-fill.

Technical Specifications:

Shipping Weight:…..2.50kg

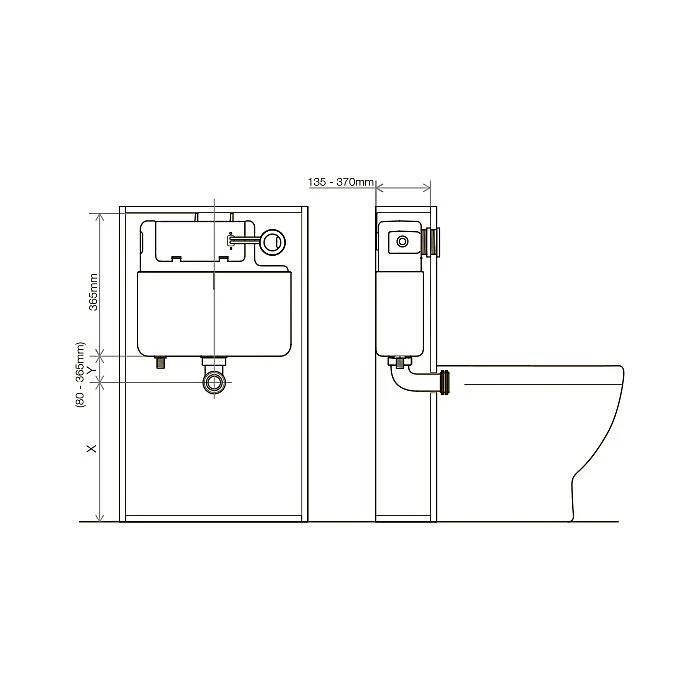

Cistern Size:…..365mm(H) x 434mm(W) x 135mm(D)
Cistern Capacity:…..3/6L
Endurance:…..Cycle tested to 200,000
Pressure Range:…..0.2 – 10 bar
Material:…..High density polyethylene with polystyrene insulation jacket
