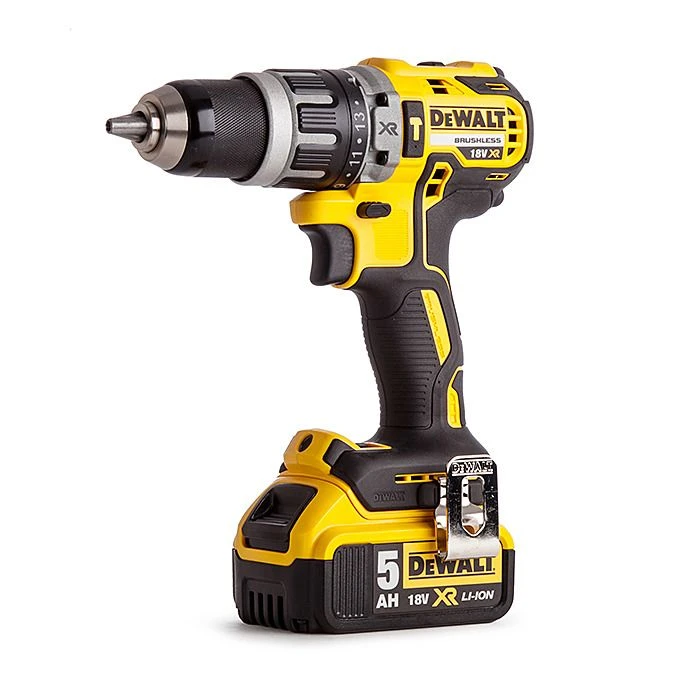

DeWalt XR 18V Brushless Compact Hammer Drill with 5.0Ah XR 18V Li-Ion Battery DCD796P1-GB
The DCD796 18V XR Hammer Drill by DeWalt has an incredibly compact and lightweight design, making it ideal for use in confined spaces and helping to increase comfort of use and control. It features the latest second generation DeWalt Brushless Motor providing 30% more power, increased torque and unbelievable efficiency that just keeps going and going, with increased air flow directed to the motor keeping it cooler for longer. An all metal two speed transmission ensures an increased tool life as well as increased run time, with 15 position adjustable torque control delivering constant and precise driving into a range of materials. The enhanced compact design of this Cordless Hammer Drill features a rubber moulded grip for increased comfort of use and an intelligent trigger provides total control in any application.

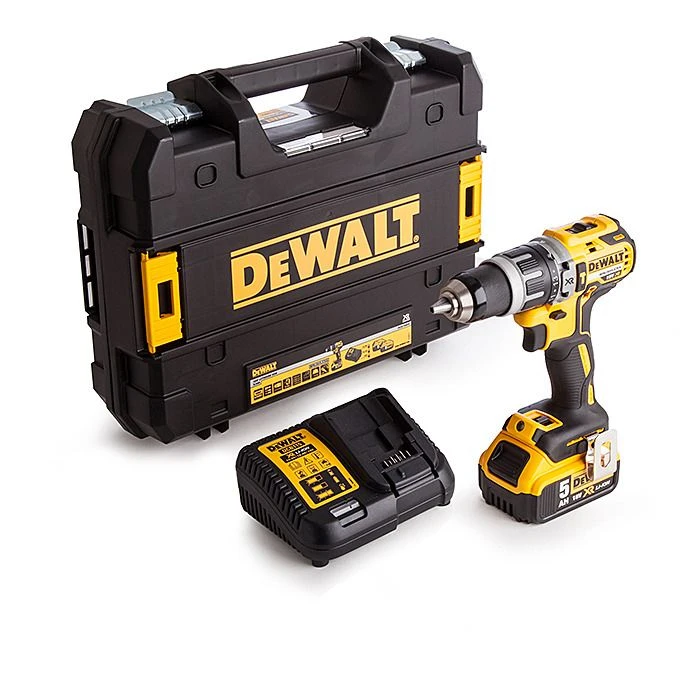

This model of the DeWalt DCD796 XR Brushless Hammer Drill is supplied the latest DeWalt 5.0Ah 18V XR Li-Ion Battery with state of the art charge indicator, providing more than enough power for any job, as well as a DeWalt XR Multi-Voltage Charger, a belt hook, a bit holder and a DeWalt T-STAK Heavy Duty Carry Case.
Features:
- DeWalt DCD796 18V XR Compact Brushless Hammer Drill.
- New lightweight and compact design.
- Powerful generation 2 DeWalt brushless motor technology.
- 30% more power with increased torque and efficiency.
- 15 position adjustable torque control.
- 2 speed all metal transmission for increased run time.
- Comfortable moulded rubber grip.
- 3 setting LED work light.
- Improved air flow to motor.
- Total control thanks intelligent trigger design.
- New 5.0Ah 18V XR Li-Ion Battery, Charger and Carry Case.
Technical Specifications:
Shipping Weight:…..2.00kg
Manufacturer:…..DeWalt
Voltage:….. 18v
Power Output (W):….. 460
Soft Application Max Torque (Nm):….. 27
Hard Application Max Torque (Nm):….. 70
Torque Settings:….. 15 + Drill
Brake Type:….. Electric
No. of Gears:….. 2
LED Job Light:….. Yes / Delay / Base-mounted
Rotation:….. Forward / Reverse
Variable Speed Control Trigger:….. Yes
No Load Speed (RPM) High:….. 0-2000
No Load Speed (RPM) Med:….. N/A
No Load Speed (RPM) Low:….. 0-550
Chuck Type:….. 3-Jaw / Single Sleeve Keyless / All Metal
Chuck Capacity (mm):….. 1.5-13.0
Drill Capacity: Concrete (mm):….. 13
Drill Capacity: Metal (mm):….. 13
Drill Capacity: Wood (mm):….. 40
Impact Rate (BPM) High:….. 0-34000
Impact Rate (BPM) Med:….. N/A
Impact Rate (BPM) Low:….. 0-9350
Overall Length (mm):….. 190
Sound Pressure Level (LpA):….. 89 dB (A)
Sound Power Level (LWA):….. 100 dB (A)
Sound Uncertainty (K):….. 3 dB (A)
Drilling Concrete Vibration Emission (ah):….. 11.5 m/s²
Drilling Concrete Vibration Uncertainty (K):….. 1.6 m/s²
Drilling Metal Vibration Emission (ah):….. <2.5 m/s²
Drilling Metal Vibration Uncertainty (K):….. 1.5 m/s²
